Fingerboard Radius Gauge

Code
505655
€13.03
In stock

Speciale calibro a righello: 6 diversi raggi in uno! Design originale da Hosco!

One is fingerboard radius gauge. It has 6 major different radius. Another is 0.2 mm pitch string action gauge. This is very unique tool for guitar builders and players.

L'HOSCO Radius Gauge ha 2 funzioni. Una è il raggio della tastiera e ha 6 raggi diversi. L'altro è il calibro di 0,2 mm per misurare l'action della corda. Questo è uno strumento molto particolare per costruttori di chitarra e chitarristi!

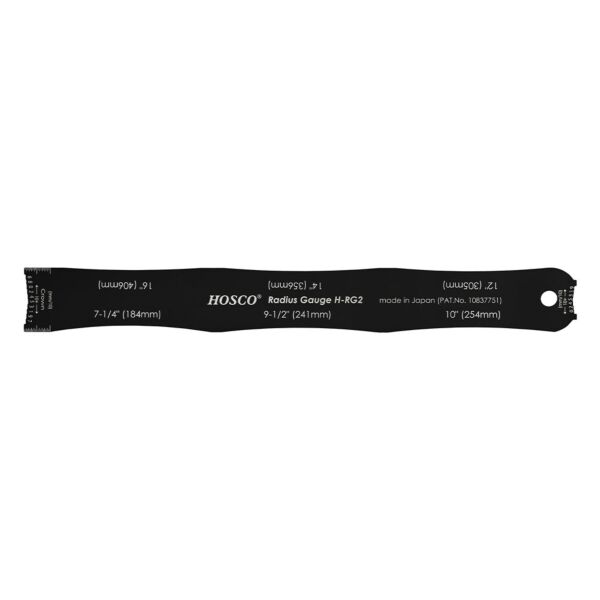

HOSCO Radius Gauge

7-1/4", 9-1/2", 10", 12", 14", 16" radius gauge + string action gauge (0.2 mm pitch checking)

  • Materiale: acciaio inox
  • Dimensione: 200 mm x 24 mm
Show more product details
Details

How to use string action gauges

1. The orange line is placed from 1.0mm in height to 2.0 mm. The green line is placed from 2.0 mm to 3.0 mm.
2. The crossing point of the blue line and the orange line is 1.0 mm and the crossing point of the yellow and orange is 1.2mm.
3. The red line is at the bottom of the string and the red line is crossing to the green line. You read the crossing point of the red and green lines.
<4. This crossing point of the green and red line is the yellow line (0.2mm line). So the string height is 2.2 mm.
