Luban No. 103 Bronze Block Plane
Sku:
546099
Out of stock
€62.95

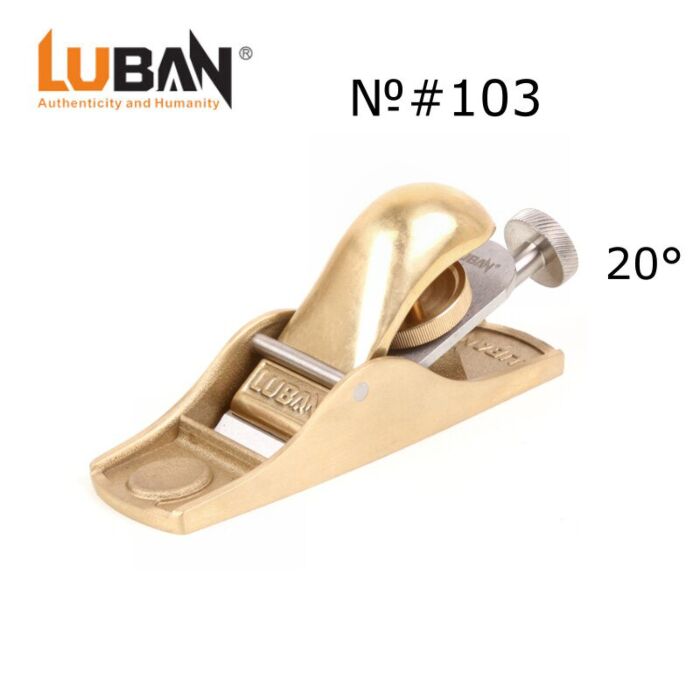

Luban No. 103 in Bronze
Features of the No. 103
- Body material: cast bronze (rust-free!)
- Blade grade with sole: 20 degrees
- Blade width: 31.5 mm and thickness: 3 mm
- Blade made of T10 carbon steel, hardened to RC60-63
- Dimensions: 137 x 35/40 mm
- Weight: 456 g
Shipping and returns
Standard shipping in Italy: €9.90 incl. VAT.
For international shipments, the website calculates the rate at checkout.
For packages over 30 kg, contact us for a quote.
Returns: you have 10 days from receipt to exercise your right of withdrawal. Upon delivery, always check the packaging integrity and, if damaged, write "accepted with reservation" on the courier's delivery note.
Complete your purchase
Selected total
Description / Luban No. 103 Bronze Block Plane
Notes on use: To adjust the blade, loosen the cap wheel until the lightest possible pressure is exerted on the blade. Position the blade sideways with your fingers and then, with the help of a piece of wood to rest it on, advance the blade until it touches the surface. Tighten the screw with about half a turn and do a cutting test; adjust further if necessary. To block the blade it is not necessary to apply all the tension that the wheel is capable of, since there is also the advantage of the lever effect of the cap.
