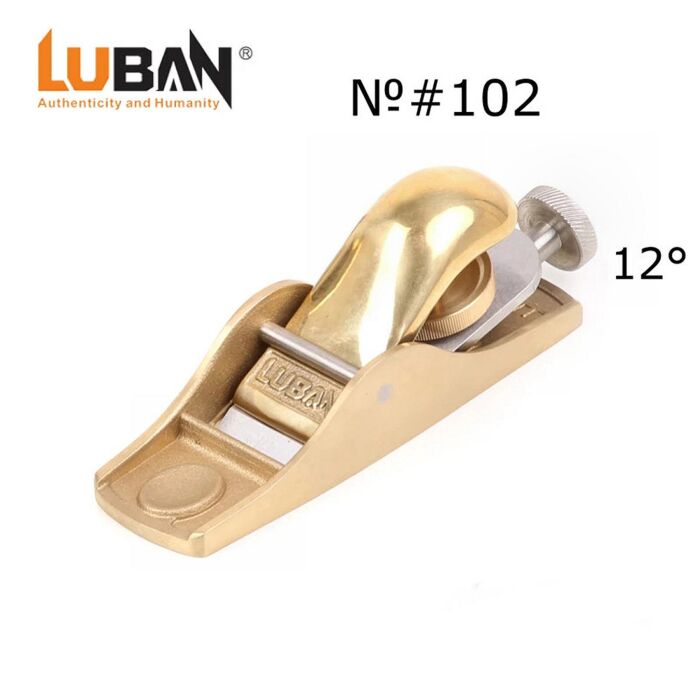

Luban® No. 102 Bronze Plane, Low Angle

Name: Luban® No. 102 Bronze Plane, Low Angle
SKU: 500894
Price: 70.08 EUR
Availability: InStock

Code

500894

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€70.08

In stock

Created in bronze, this delightful plane is traditionally held in the apron pocket, ready for immediate and frequent use.
Compact and easy to use with one hand, has a cutting iron made from T10 carbon steel hardened to RC60-63 with 25 degree bevel up blade bedded at 12 degrees.
It's a plane useful for many jobs that will surely become your favorite!

Features:

Bronze body (not rust!)
Cutting width 32 mm
Blade 3 mm carbon steel T10 hardened RC60-63
Dimensions 137 mm x 35/40 mm
Weight 470 g

Show more product details

Details

Notes on use: To adjust the blade, loosen the cap wheel until the lightest possible pressure is exerted on the blade. Position the blade sideways with your fingers and then, with the help of a piece of wood to rest it on, advance the blade until it touches the surface. Tighten the screw with about half a turn and do a cutting test; adjust further if necessary. To block the blade it is not necessary to apply all the tension that the wheel is capable of, since there is also the advantage of the lever effect of the cap.
