Rotary motor for UV box
In stock
Request a quote
We will reply within 24 hours
High quality rotary motor with 1 revolution per minute and a load capacity both in support and in traction up to 10kg, with EU plug.
Perfect for violin, viola and cello!
The rotary motor with a power of 4W and a speed of one revolution per minute is perfect for evenly exposing UV rays in your UV box. This version has been designed to allow use with loads up to 10kg.
The 547472 rotary motor includes the universal nylon support.
N.B.: Our motor is a custom product and is not like other similar ones on the market. The support and mechanics have been modified to obtain greater stability, versatility, reliability and better performance.
Shipping and returns
Standard shipping in Italy: €9.90 incl. VAT.
For international shipments, the website calculates the rate at checkout.
For packages over 30 kg, contact us for a quote.
Returns: you have 10 days from receipt to exercise your right of withdrawal. Upon delivery, always check the packaging integrity and, if damaged, write "accepted with reservation" on the courier's delivery note.
Description / Rotary motor for UV box
This rotary motor is particularly suitable for supporting and rotating violins, violas and cellos. Thanks to the holes in the base, the motor can also be easily fixed, with metal or plastic cable ties, to supports to hang the instrument instead of resting it. This gives you the flexibility to place your instrument securely in the UV box as you prefer.
NOTICE
Our experience recommends (and this is why we requested the changes made) not to hang the instruments because the temperatures and humidity inside the UV box cause changes in the projection of the neck and generally lead to structural modifications. The best condition is to keep the instrument vertical by inserting the appropriate support into the endbutton/endpin hole. This position does not cause tension and avoids stress during the tanning of the instrument in the white or the drying of the varnish.
- Motor power 4 Watt
- 1 revolution per minute
- Diameter 190 mm
- Dimensions 190 x 190 x 133 mm
- Load capacity 10 kg

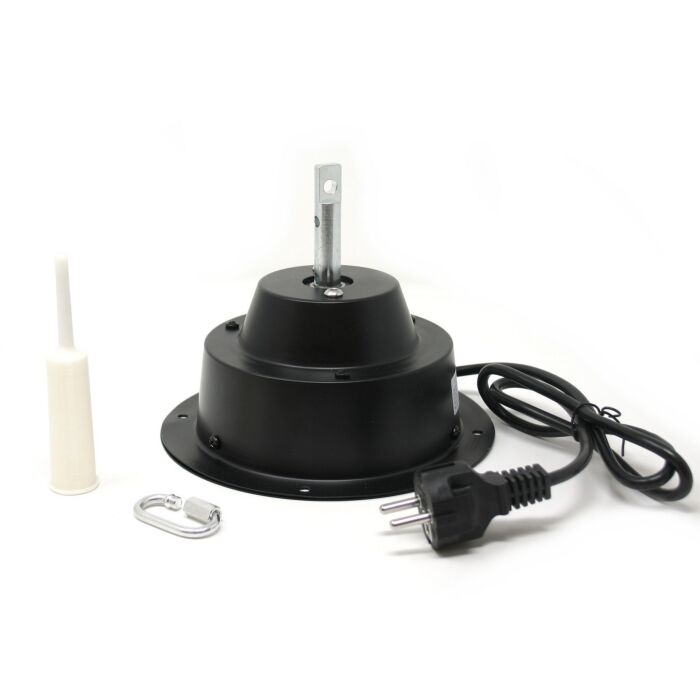

The motor is already supplied with a UV-resistant plastic support and a hook for hanging the instruments. The nylon support is reinforced with a through screw to ensure greater resistance and durability to the support.
Replacement support also available separately.
Please note: the support inside has the invitation for the flat end of the metal pin that comes out of the motor. Rotate the support on the pin during insertion until the two parts fit together.
Indicatives diameters of the universal support for violin, viola and cello.
- violin-viola: approximately 6-8 mm taper 1/30
- cello: approximately 20-23 mm taper 1/17
KEEP THESE MEASUREMENTS IN MIND WHEN YOU TAPERING ENDBUTTON AND ENDPIN HOLES OF INSTRUMENT IN THE WHITE INSERTING THE SUPPORT AS A REFERENCE
