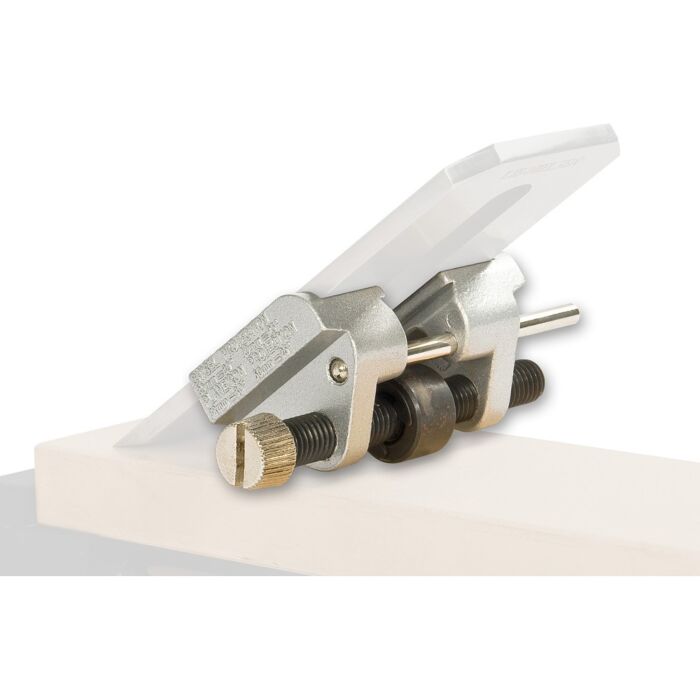

Rider Honing Guide
Sku:
502318
Out of stock
€19.59
The Axminster Workshop honing guide is very similar in design to the classic Eclipse 36. It is an ideal tool for achieving a consistent bevel angle, everytime you sharpen a blade.
More details
Shipping and returns
Standard shipping in Italy: €9.90 incl. VAT.
For international shipments, the website calculates the rate at checkout.
For packages over 30 kg, contact us for a quote.
Returns: you have 10 days from receipt to exercise your right of withdrawal. Upon delivery, always check the packaging integrity and, if damaged, write "accepted with reservation" on the courier's delivery note.
Complete your purchase
Selected total
Description / Rider Honing Guide
The guide offers two tool-clamping positions. The upper jaw accommodates blades up to 78mm(3-1/8") wide. A lower V-groove secures bevel edge chisels or thin tools from 3mm(1/8") to 48mm(1-7/8") wide.
The bevel angle depends on the blade's projection in front of the guide. Typically, plane irons in the upper jaw: 50mm(2") gives 25° and 38mm(1-1/2") gives 30°. Chisels or blades placed between the lower jaws: 40mm(1-9/16") for 25° or 30mm(1-3/16") for 30°. We recommend constructing a very simple jig to make setting quick and simple. Using a jig will guarantee consistent bevel angles everytime you sharpen.
The guide’s 19mm(3/4") diameter by 12mm(1/2") wide roller allows you to hone both straight cutting edges or, by slightly rocking the guide, put a crown on an edge.
Key Features
The bevel angle depends on the blade's projection in front of the guide. Typically, plane irons in the upper jaw: 50mm(2") gives 25° and 38mm(1-1/2") gives 30°. Chisels or blades placed between the lower jaws: 40mm(1-9/16") for 25° or 30mm(1-3/16") for 30°. We recommend constructing a very simple jig to make setting quick and simple. Using a jig will guarantee consistent bevel angles everytime you sharpen.
The guide’s 19mm(3/4") diameter by 12mm(1/2") wide roller allows you to hone both straight cutting edges or, by slightly rocking the guide, put a crown on an edge.
Key Features
- Removes guesswork from setting bevel angles
- For bevel edge or firmer chisels and plane irons
- All metal construction
